• Reliable Performance : The booster system features a technologically advanced,
  lightweight vertical multistage centrifugal pump paired with a standby pump to ensure
  uninterrupted and reliable operation.
• Compact and Sleek Design : Engineered with precision and equipped with unique valves,
  the system minimizes unnecessary lengths, delivering a well-coordinated, space-saving
  design.
• Clean and Hygienic : Constructed with stainless steel pressure-boosting pumps and
  sanitary-grade stainless steel pipe valves, the system provides smooth flow channels
  resistant to rust and dirt buildup. This ensures high efficiency and minimal secondary
  water contamination.
• Pressure Stabilizer System: With fully automated operation, an imported Variable
  Frequency Drive (VFD), and an advanced PID control system, the booster system
  maintains stable pipeline pressure for seamless water usage.
• Significant Energy Savings : The combination of high-efficiency pumps and PID control
  reduces energy consumption by 30%-60% compared to traditional air-pressure water
  supply systems.
• Reliable Water Shortage Protection : The system incorporates robust water shortage
  protection, preventing booster pump damage during dry operations. It resumes operation
  automatically when the water supply is restored, whether from a tap or water sump.


Structure

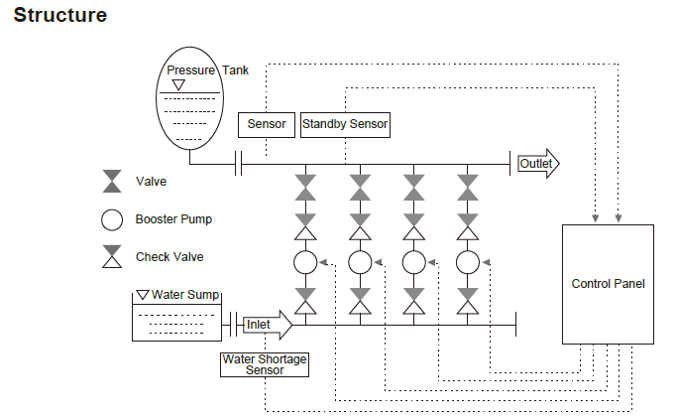

As shown in Figure 1, this constant-pressure water supply system features four pumps.
Stabilizing or auxiliary pumps are not included by default but can be added upon request.

The system's pressure-stabilizing tank size and the specifications of its inlet and outlet main pipes are fully customizable to meet user requirements.
For added functionality, an optional sensor can be installed at the outlet to prevent pipe bursts or enable emergency automatic water supply. This feature is available upon request and is not included in the standard configuration.
