Features- Quest® by CE and TUV Certificated.
- 2 wire version without ground plate, normally open for pump down and normally closed for pump up.
- 3 wire SPDT version, normally open for pump down and normally closed for pump up.
- Includes an innovative one-piece cable weight for mounting; no clip to lose.

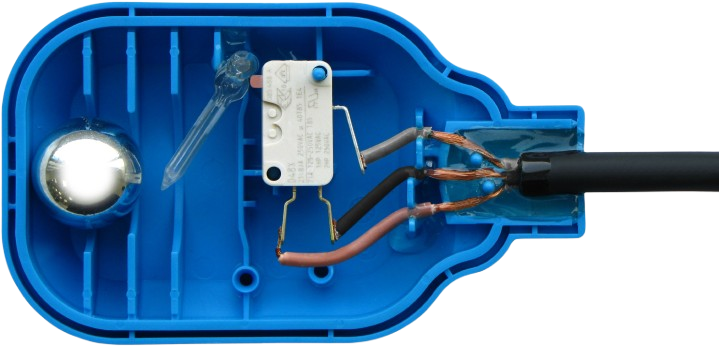

- Mechanically-activated, snap action contact, wide-angle pump switch designed for preference and dependability.
- Epoxy Waterproof Technology : The float switch cable is treated with epoxy resin to enhance its waterproof capacity. This feature also prevents water and moisture from entering the float switch, control panel, and pump, providing a safer and longer product life.
Specification
- Cable : Flexible rubber cable H07RN-F, 1 mm², 2 or 3 conductors.
- Float/Cable Weight : Non-toxic, corrosion-resistant polypropylene housing.
- Electrical : Type of load R-M = Resistance–Motor load, 24–250 VAC rated voltage.
- Maximum pump running current : 10 (8) amps
- Frequency : 50/60 Hz
- Micro disconnect – Automatic life cycles : 50,000 times.
- Protection rating : IP68
Application
- This equipment is rated to 50°C, approved for use in non-potable water.
- Suitable for mild alkaline and mild acidity sewage water.
Additional Product Details File
| Item | Download |
| FLOAT SWITCH |  |
